Industrial air spring designed for industrial machine applications, featuring imported natural rubber construction and gas-filled operation.
Original CONTITECH Part Number: FS412-10 DS
Original CONTITECH Part Number: FS 412-10 DS
Original CONTITECH Part Number: FS412-10 DS 67962
Original CONTITECH Part Number: FS 412-10 DS 67962
The following are models that can replace FS 412-10
FIRETSONE Part Number: W01R584060 / w01R584060
FIRETSONE Part Number: W01-R58-4060 / w01-R58-4060
FIRETSONE Part Number: W01 R58 4060 / w01 R58 4060
FIRETSONE Style Number: 12X1 / 12''x1 / 12''X1
DUNLOP FR Part Number: 12''x1
DUNLOP FR Part Number: SP1540
DUNLOP UK(PNEURIDE): PNP305520120
DUNLOP UK(PNEURIDE): PNP 305520120
DUNLOP UK(PNEURIDE): PNP 30552 01 20
NORGREN Part Number: M/31121
NORGREN Part Number: M 31121
NORGREN Part Number: M31121
NORGREN(inch)xConvolutions: 12''X1 / 12X1 / 12''x1
PARKER Part Number: 9109044
PARKER Part Number: 12''x1 9109044
FS 412-10 Contitech Air Spring Technical Data

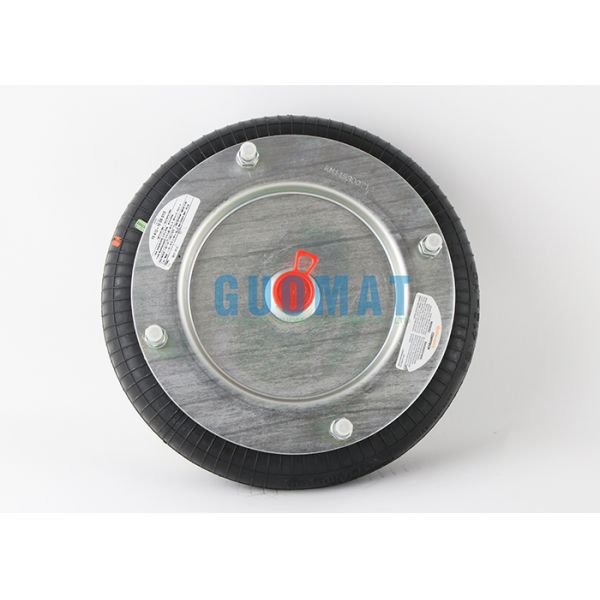

The FS 412-10 Contitech air spring is a single-convoluted type model. The top cover plate has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The air vent is G1/2 and located in the center of the cover plate. The bottom cover plate also has a diameter of 260mm and four M10 bolts with a center-to-center distance of 232mm. The rubber bellows have a maximum outer diameter of 330mm. Maximum height is 150mm,Minimum height is 50mm
Pneumatic application - static characteristic values
Forcr F (kN) |
| Pressure P | bar | 3 | 4 | 5 | 6 | 7 | 8 | Vol V(I) |
| height H(mm) | 120 | 11.2 | 15.1 | 18.9 | 22.9 | 27 | 31.4 | 5.5 |
| 100 | 13.9 | 18.5 | 23.4 | 28.1 | 33.1 | 38.3 | 4.6 |
| 80 | 16.5 | 22.1 | 27.6 | 33.4 | 39.1 | 45 | 3.4 |
| 60 | 18.5 | 24.8 | 31 | 37.2 | 43.6 | 50 | 2.2 |
